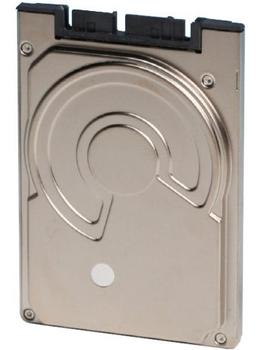

TOSHIBA 160GB microSATA 5400RPM 1,8"
For at se vore priser skal du være oprettet som kunde: Er du allerede oprettet som kunde skal du logge ind.
|
|
TOSHIBA 160GB microSATA 5400RPM 1,8"
-
Tilslutning
Serial ATA II
-
Overførselshastighed
3GB/s
-
Kapacitet
160GB
-
Omdrejningstal
5400RPM
-
Størrelse
1.8"
|
Beskrivelse
Specifikationer
1.8-Inch SATA HDD 250/160/120GB
MK2529GSG/MK1629GSG/MK1229GSG
Toshiba, the pioneer in small form factor hard disk drives (HDDs), continues to deliver innovative storage solutions with the addition of three new high-capacity, high-performance Serial ATA 1.8-inch HDDs. The MK**29GSG family features the industry's first quarter-terabyte 1.8-inch HDD along with 120GB and 160GB capacity drives.
Combined with the new micro-SATA connector, Serial-ATA 3.0Gb/s interface and 5400 RPM spin speed, the MK**29GSG family offers small and light-weight solutions, at increased data transfer rates for enhanced performance, in sub-notebook PCs.
1.8-inch Footprint With Up To A Quarter-Terabyte (250 GB*) Of Capacity
5400RPM Spin Speed
Host Transfer Rate Up To 3.0 Gb/s
Serial ATA 2.6 / ATA-8 Interface
Micro-SATA Connector
8MB Cache Buffer For User Data
| |
MK2529GSG
(HDD1F07) |
MK1629GSG
(HDD1F08) |
MK1229GSG
(HDD1F09) |
| Formatted Capacity* |
250GB |
160GB |
120GB |
| Number of Data Heads |
4 |
4 |
2 |
| Number of Disks |
2 |
2 |
1 |
| Interface |
SATA 3.0 Gb/s (and SATA 1.5 Gb/s)
Serial ATA Revision 2.6 (ATA-8) |
| Interface Transfer Rate |
3.0Gb/sec |
| Media Transfer Rate |
Up to 707.9Mbps |
| Areal Density (max) |
Up to 378.8 Gb/in2 |
| Bytes per Sector (Host/Disk) |
512 |
| Logical Blocks (LBA) |
488,397,166 |
312,581,808 |
234,441,648 |
| Environmental Compliance |
RoHS Compliant |
| Buffer |
8MB |
| Rotational Speed |
5400rpm |
| Average Latency |
5.55 |
| Internal Transfer Rate (Mb/sec) |
332.0 - 707.9 |
217.0 - 453.0 |
318.8 - 684.1 |
| Average Seek Time |
3ms |
| Track-to-Track Seek Time |
15ms |
| Maximum Seek Time |
26ms |
| Load/Unload Cycles |
600.000 |
| Error Rates Non-recoverable |
1 in 1014 bits |
| Allowable Voltage |
3.3V +/- 5% |
| Start |
2.5W |
| Seek |
1.2W |
| Read/Write |
1.2W |
| Low Power Idle |
0.40W |
| Stand-by |
0.18W |
| Sleep |
0.13W |
| Energy Consumption Efficiency |
0.0016W/GB |
0.0025W/GB |
0.0033W/GB |
| Height |
0.31" (8mm) |
| Width |
2.13" (54mm) |
| Depth |
3.09" (78.5mm) |
| Weight |
2.19 oz (62g) |
2.12 oz (60g) |
| Operating |
41o - 131oF (5o to 55oC) |
| Non-Operating |
-4o - 149oF (-20o to 65oC) |
| Operating Vibration |
19.6m/s2, 2.0G (15 - 500Hz) |
| Non-Operating Vibration |
49m/s2, 5.0G (15 - 500Hz) |
| Operating Shock |
4,900m/s2, 500G/2.0ms |
| Non-Operating Shock |
14,700m/s2, 1,500G/1.0ms |
| Idle Mode (Average) |
18dBA |
18dBA |
16dBA |
| Seek Mode (Average) |
23dBA |
23dBA |
22dBA |
* One Gigabyte (1 GB) means 109 = 1,000,000,000 bytes using powers of 10. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the computer includes one or more pre-installed operating systems, pre-installed software applications, or media content. Actual formatted capacity may vary.
| Harddisk kapacitet | 160 GB |
| Hard disk størrelse | 45.7 mm (1.8 ") |
| Harddisk omdrejningshastighed | 5400 rpm |
| Hard drive interface | Serial ATA |
| Drevenhed, bufferstørrelse | 8 MB |
| Harddisk, gernnemsnitlig søgetid | 15 ms |
| Gennemsnitlig latency | 5.55 ms |
| Bytes per sector | 512 |
| Hard disk number of heads | 4 |
| Dataoverførselshastighed | 3 Gbit/sek. |
| Strømforbrug | 2.5 W |
| Strømforbrug (standby) | 0.18 W |
| Strømforbrug (PowerSave) | 0.13 W |
| Input Voltage | 3.3 V |
| Vægt | 62 g |
| Højde | 8 mm |
| Bredde | 54 mm |
| Dybde | 78.5 mm |
| Operationel temperatur | 5 - 55 °C |
| Lydtryk | 23 dB |
| Mål (BxHxD) | 54 x 78.5 x 8 mm |
| Internt | Ja |
